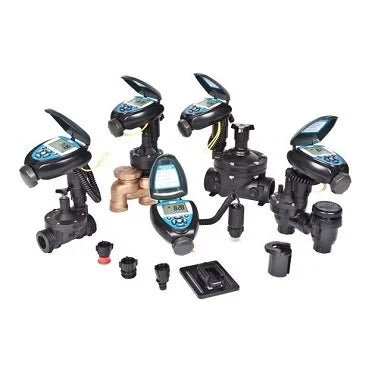

Dig 710A-200 Battery Operated Controller With 2" Inline Valve

Single station battery operated controller with 2” inline valve. Completely waterproof and able to operate in harsh environments, the 710A series single-station battery operated controller is used for above-ground or below-grade installation on a wide range of brand name valves.

• SKU: 710a-200

• Type: DC Latch

• Body: IP68

• Program mode: seven keypad buttons with integrated liquid crystal display

• Power source: two AA alkaline batteries (not included)

• Latching Solenoid: 7-12 VDC, two-way, normally closed

• Completely waterproof (IP68 certified) - can operate in harsh environments

• Solenoid control orifice: .065 (1.65 mm)

• Encapsulated solenoid thread: 11/16”-12 UN male thread

• Retractable solenoid wire: 8.1” (coiled length when extended, approximately 36”

• Sensor connection: normally closed 6” (15 cm) yellow wire (16 AWG)

• Adapters included to convert Rain Bird, Hunter and Toro valves (model 710-000)

• Valve type: 2” globe inline valves (NPT or BSP) or 2" actuator and anti-siphon valve (NPT)
